Tools & apps

Tools, apps, and Web applications for specialist companies

Arbonia stands for top quality. You can also expect this quality from our digital assistants. As an HVAC specialist, we want to make it easier and more efficient for you to plan and renovate using our tools & apps. You’ll find all the tools you need on this page, for example for tenders and building planning.

Article master data

Arbonia is a partner of the international HVAC platform This is operated by industry association ARGE – Building digital competence. You will find a whole host of product information from numerous brand manufacturers at . For Arbonia products, apart from an online shop, you will also find countless documents, images, videos, and item data in a variety of formats.

The product data is available to download in the following formats:

  • CSV and Excel
  • BMEcat 1.2 (XML)
  • ARGE XML (DQR 9.0)
  • Datanorm 4.0

Master data quality mark

ARGE Neue Medien offers its members a mark for certified data quality. In addition to the green tick, a certificate now also eye-catchingly confirms the “DQR-compliant” rating, depending on the applicable data quality guideline.

We are delighted that Arbonia has been awarded the “Green Tick” for DQR-compliant data quality on the basis of the supplied article master data in accordance with 9.0.

Tender specification texts


Product performance specifications.

A selection of the latest tender specification texts for Arbonia radiators, trench convectors and ceiling systems is available to export in a total of nine data formats (Word, Excel, RTF, PDF, TXT, GAEB XML, GAEB 90, DATANORM 5, ÖNORM) in the storage-management programme of your choice.


  • Column radiators
  • Home radiator
  • Bathroom radiators
  • Heating panels
  • Convectors
  • Trench convectors
  • Ceiling systems

Tender specification texts HT according to Austrian standard ÖNorm B2063

Here you will find Arbonia tender specification texts according to Austrian standard ÖNorm 2063 – service group 46 radiators – for standardised performance specifications in Austria:

VDI 3805

Sheet 6 Radiators & Sheet 2 Heating fittings

Using the data format standardised by the VDI for replacing technical data for heating and cooling surfaces and for importing into software programmes in the HVAC sector.

  • Radiator product ranges

  • Sizes

  • Heat outputs

  • Geometries (CAD formats)

  • Heating and cooling with/without fan (Ascotherm, fan coil)

  • Heating fittings

  • Technical data such as kv values / valve settings

Issue 2023-10

Web navigator

For 2D/3D CAD planning, the VDI 3805 web navigator online in your web browser can be used to generate the required CAD file for Arbonia radiators. The CAD data can be downloaded to CAD programmes such as AutoCAD, Revit, and Nemitschek, etc. in the following formats: DXF, DWG, IFC, STEP, and RFA. There are also attributes available for the geometries, allowing the data to be used for the BIM process.

You will find more information on BIM in Switzerland under DataExpert BIM.

Web navigator

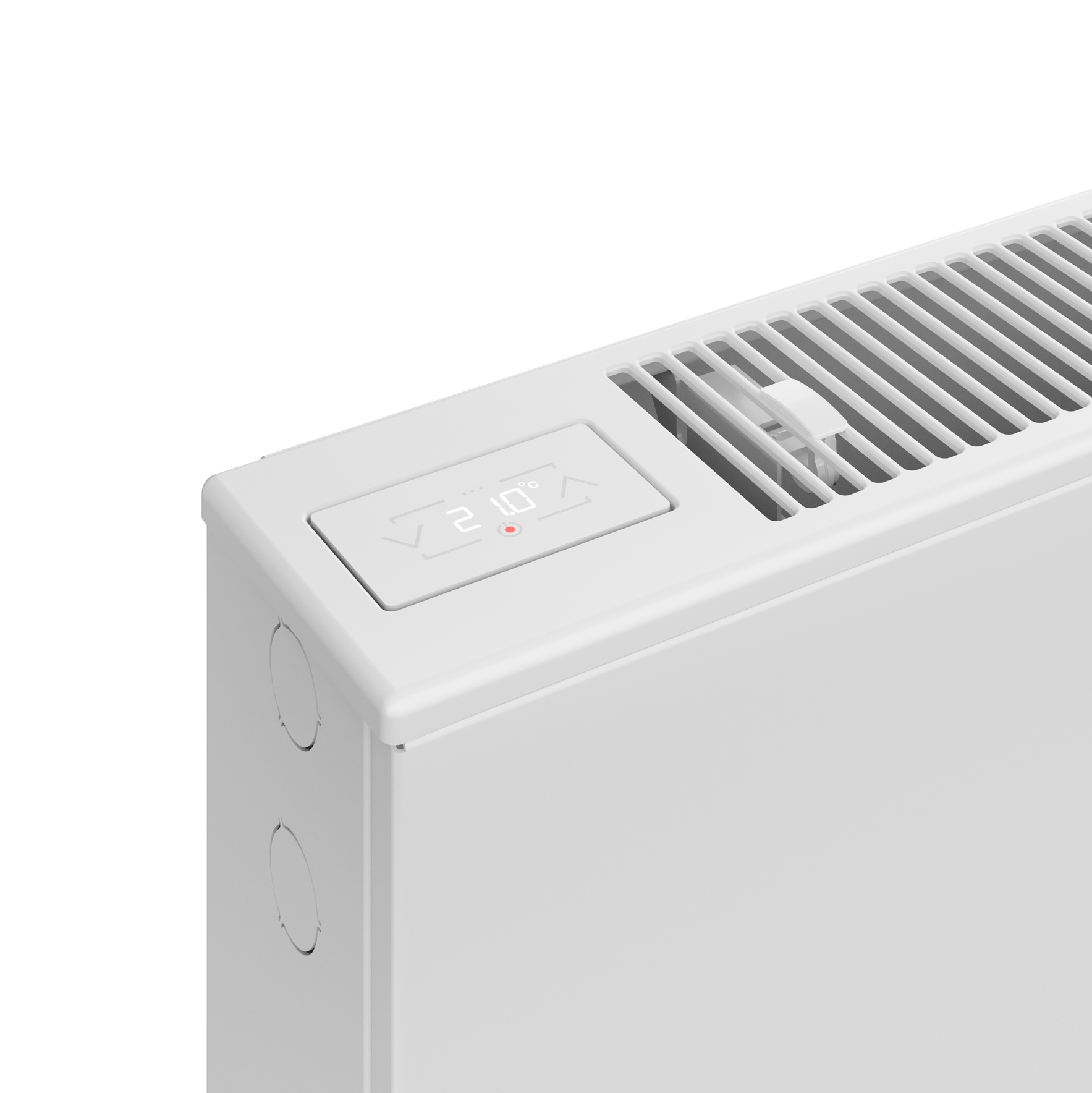

KNX circuit board

Integrate controls easily into the building management system.

Simple integration into BMS systems thanks to new KNX circuit board.

  • Data point list created according to KNX association specifications

  • Most simple and cost-effective system integration

  • Simple operation and alarm monitoring

Tutorial video

Integrating BIM data in Revit

The tutorial video shows the integration of Arbonia radiators from the VDI 3805 portal into the Autodesk Revit construction planning software and is aimed at all those who work according to the BIM method in Revit. After installing the Revit plug-in “RubiCon”, the Arbonia geometries including technical attributes can be integrated into Revit.
